ROTAX 912UL EXTERNAL GENERATOR
To identify your part:

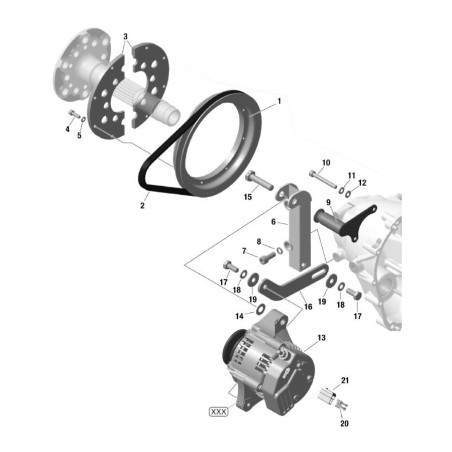

- Refer to the drawing and locate the reference number.
- Identify the part number in the table using the reference number.
- Click on the part number (large print).
- Start your search using the part number in the top left corner using the search field (if the part number is small print).
| Repère | Nom | Référence |
| 1 | POULIE COURROIE ALTERNATEUR 912 980590 | 980590 |
| 2 | COURROIE ALTERNATEUR 912 980400 | 980400 |
| 3 | DEMI-FLASQUE POULIE ALTERNATEUR 912 980605 | 980605 |
| 4 | BTR M5 X 16 MM 840514 | 840514 |
| 5 | LOCK WASHER DIN 128-AS-FST 945830 | 945830 |
| 6 | SUPPORT ALTERNATEUR 912 953223 | 953223 |
| 7 | ALLEN SCREW M8X20 240072 | 240072 |
| 8 | RONDELLE FENDUE DIAMETRE 8 MM. 845310 | 845310 |
| 9 | Support alternateur 912 953232 | 953232 |
| 10 | BTR M 6 X 50 MM. 241762 | 241762 |
| 11 | LOCK WASHER DIN 128-A6-FST 945831 | 945831 |
| 12 | WASHER 6,4 DIN 125 827962 | 827962 |
| 13 | ALTERNATEUR F3A 887251 | 887251 |
| 14 | RONDELLE ENTRETOISE ALTERNATEUR 912 927952 | 927952 |
| 15 | HEX. SCREW M10X45-SK-DIN 931 941636 | 941636 |
| 16 | SUPPORT ALTERNATEUR 912, 912I, 914 953241 | 953241 |
| 17 | HEX. SCREW M8X20-SK-DIN 933 940596 | 940596 |
