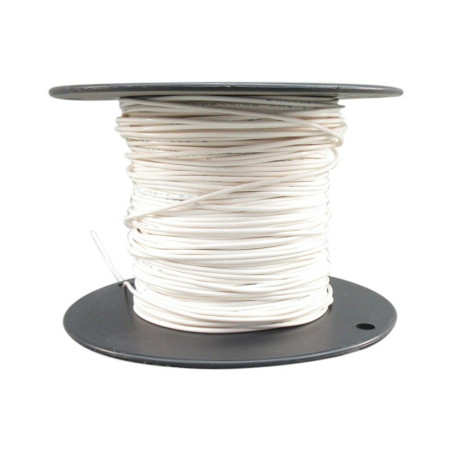

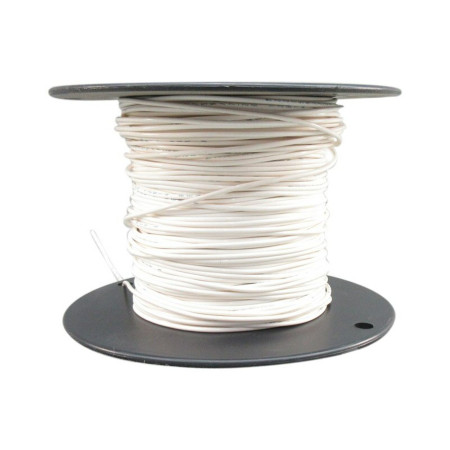

Fil blanc non blindé 8GA M22759/16-8-9 (x100ft)

For many years, the standard hook-up wire for light aircraft has been MIL-W-5086A, which requires the use of a tinned copper conductor, a voltage rating of 600 volts, and a temperature rating of 105°C. This basic wire is then coated with various insulating coatings, including PVC. The use of PVC-containing wire in aircraft has been the subject of much debate in recent years. The Air Force does not authorize the use of this type of wire in military aircraft due to the toxic fumes generated in a fire, which can incapacitate the crew. Although there were no formal restrictions on the use of MIL-W-5086A wire as of early 1991, our stock of MIL-W-5086A wire is depleted. We will now supply MIL-W-22759/16 wire, which meets current and future FAA military requirements.

This premium unshielded aircraft wire is manufactured to MIL-W-22759/16 specification. It features a standard tinned copper conductor and extruded Tefzel (ethylene/tetrafluoroethylene) insulation with a maximum operating temperature of 150°C. This wire is rated for 600 volts.

Colors: white, black, blue, green, red, yellow, and striped
